ACCESSORIES

• Diameter: 60 mm
• Resolution: 100 pulses per revolution
• Vcc: 5 à 12 VDC ±10%
• Icc: 70 mA
• Vout min: Vcc-1V; 0.5V
• Iout max: 20 mA
• Output impedance: 330 Ω
• Temperature: – 10°C to +60°C

• Diameter: 80 mm
• Resolution: 100 pulses per revolution
• Vcc: 5 à 12 VDC ±10%
• Icc: 50 mA
• Vout min: Vcc-1V; 0.5V
• Iout max: 20 mA
• Output impedance: 330 Ω
• Temperature: – 10°C to +60°C

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

• 4 bits coded binary
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

With solder pads

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

With pluggable screw terminal

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

With 50mm wire, 5-pin female Molex connector

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

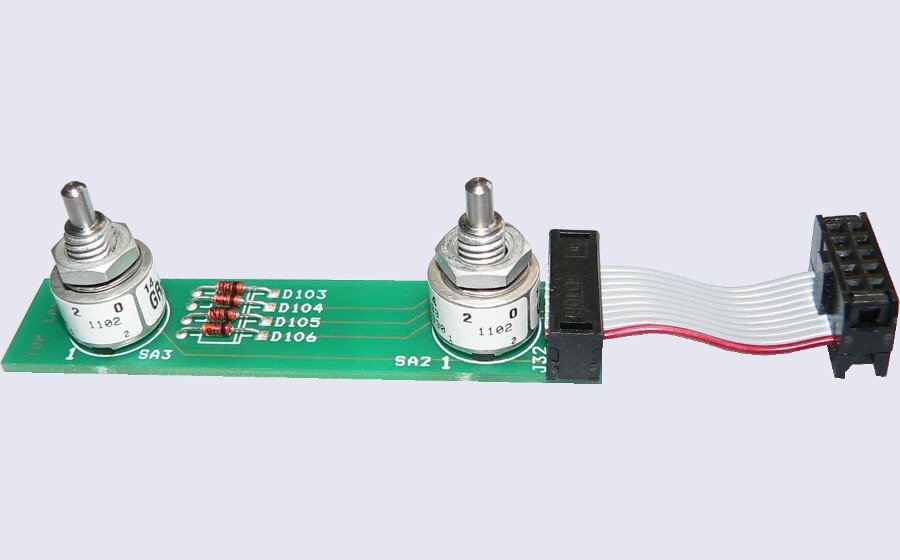

Double, spaced 46mm, 40mm with flat cable, DIN 41651 female 10-pin connector

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

Double, spaced 70mm, 120mm with flat cable , DIN 41651 female 10-pin connector

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

Double spaced 80mm, 120mm with flat cable , DIN 41651 female 10-pin connector

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

Triple, spaced 36 and 41 mm, 50mm flat cable, conn. DIN 41651 female 14-pin connector

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

With Molex connector with 5 male pins

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA
• Stop pin

Triple spaced 36 and 41 mm, male connector right 16.5mm

• 4 bits coded Gray
• 16 pos. with adjustable stop
• Vnom: 30 VDC
• Inom: 20 mA

• 2 changeover contacts
• 1 position maintained
• 2 keys
• Cables 70 mm
• Molex female connector, 4-pin

• 3 changeover contacts
• 2 maintained positions
• Key withdrawal in A and B
• 2 keys
• Cables 200 mm
• Molex female, 6-pin

• 2 changeover contacts
• 2 maintained positions
• Key withdrawal in A and B
• 2 keys
• Cables 70 mm
• Molex female, 4-pin

• 2 maintained positions
• Key withdrawal A and B
• 2 keys

• 3 changeover contacts

• Potentiometer 10 kΩ
• Axis 4 mm
• Cable 170 mm
• Molex connector, female, 3-pin

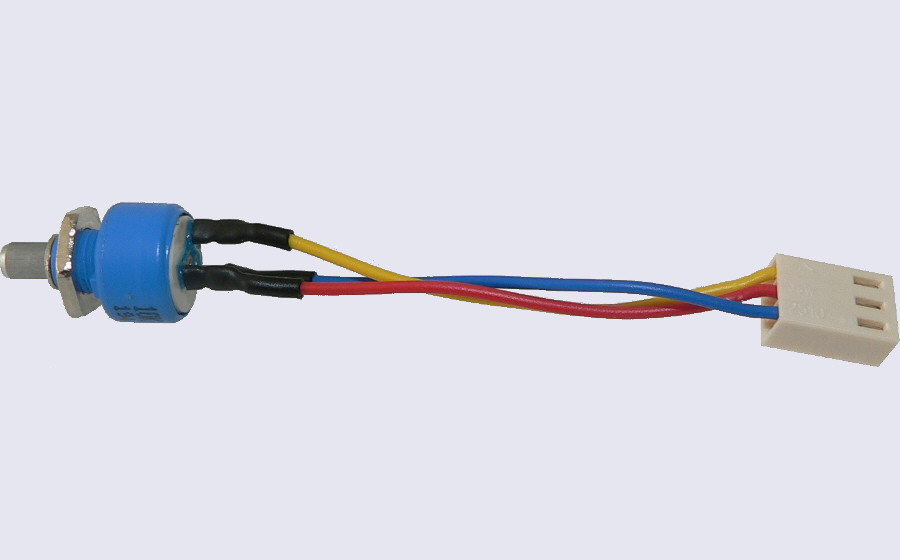

• Potentiometer 10 kΩ
• Axis 4 mm
• Cable 65 mm
• Molex connector, female, 3-pin

• Potentiometer 10 kΩ
• Axis 4 mm
• Cable 50 mm
• Molex connector, female, 3-pin

• Matt Black
• 15 mm
• Axis 3 mm

• Finned buttons
• Matt black
• Red cap
• 21 mm
• Axis 3 mm

• Matt black
• 10 mm
• Axis 4 mm
