CUSTOM MADE CONTROL PANELS

Development and mass production of control panels are one of the highlights that EASYsa nurtures and improves continuously for nearly 20 years.

Our skills and experience have enabled us to design many different models and to manufacture some versions in thousands of pieces.

We adapt our designs to the demands of our customers to provide the optimal response for large series as well as for limited quantities.

Taking care of the operator interface,
it's also taking care of the image of your machine ...

For your customer	For you
+ satisfaction	+ quality
+ efficiency	+ success
- errors	- costs

Functionality and ergonomics

Polyester membrane
3M collage
Resistant to aggressive environments
Colors of the membrane and the screen printing can be chosen

Key sheet

Fixed by screen printing on the membrane
Free insert stickers

Legends

15x15mm or 19x19mm
Flat or embossed appearance
LED lighting
Colors: red, green, yellow , blue or white
Engraved legend or removable label

Flat keys

Shape, size and color can be chosen
Single or multiple contacts
External terminals connections and / or login to the control interface

Push buttons

2 or 3 positions
Maintained or pulse
Various key models
Different lock models, prisoner position
Engraved legend or removable label

Key Switches

EASYsa - Rotary selectors for control panels

Up to 16 positions
Gray code, binary
2 types of button choices
engraved legend or removable label

Rotary switches

EASYsa - Emergency stops for control panels

1, 2 or 3 NO or NC contacts
Compliance IEC60364-5-53

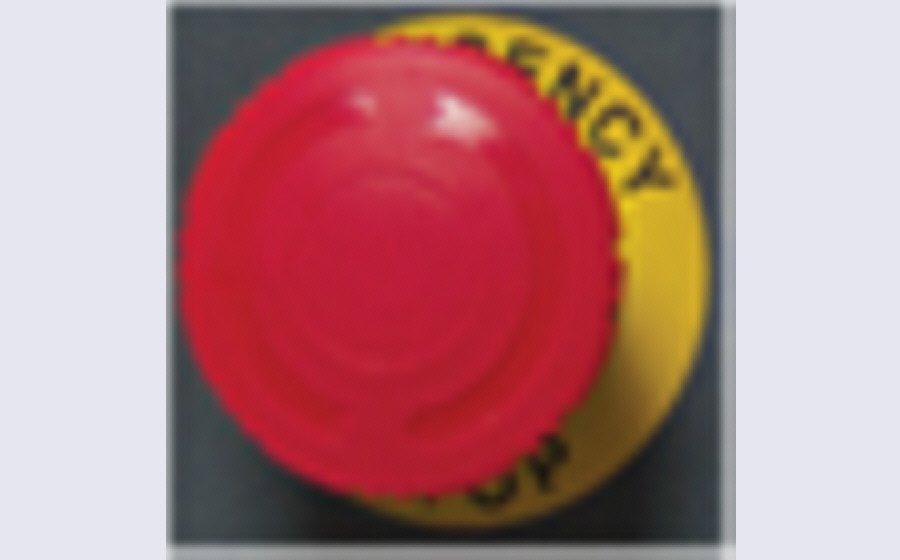

Emergency stop buttons

60mm or 80mm
100 pulse / rev
Signals A and B
Power 5V- 12VDC

Hand wheels

Window screen insert or Panel PC
LCD display or 7 segments

Displays

USB
RS232
Other connectors on demand

Front connectors

Parallel link
Fanuc IO Link
EtherCAT
Wi-Fi

Control interface

Material aluminum anodized
Sealing by neoprene seal inlaid
Front screw fastening pins or invisible studs

Base plate

Implementation …

Fixed and customizable legends
450 x 120 mm, 6 fixing screws
29 illuminated keys
4 rotary switches
1 key switch
1 emergency stop button
1 potentiometer
1 optional electronic hand wheel
Fanuc IO Link interface

T-Evo

Fixed legends
380 x 110 mm, 6 fixing screws
18 illuminated keys
1 rotary switch
1 key switch
1 emergency stop button
1 USB connector
Parallel interface

HU-HU6

Fixed legends
56 x 140 mm, 4 fixing screws
8 illuminated keys
Parallel interface

HU-V2

Fixed and customizable legends
290 x 200 mm, 4 fixing screws
43 illuminated keys
10 LEDs
1 rotary switch
2 key switches
1 emergency stop button
1 optional electronic hand wheel
Fanuc IO Link interface

EC-KB12

Remote panel
Fixed legends
200 x 200 x 52 mm
9 illuminated keys
Parallel interface

HE-KB12

Fixed legends
380 x 520 mm, 6 attachment studs
2 illuminated pushbuttons
33 illuminated keys
47 non-illuminated keys
3 rotary switches
1 key switch
1 emergency stop button
Fanuc IO Link interface + MDI

RT-KB380

Fixed legends
290 x 115 mm, 6 attachment studs
9 LED buttons
1 rotary switch
1 key switch
1 emergency stop button
Specific interfaces

RT-KB290

Fixed legends
148 x 100 mm, 4 attachment studs
8 illuminated keys
Wireless communication
Parallel interface

NI-KB02
