FREQUENCY CONVERTERS AND ACCESSORIES

Industrial frequency converters for the control of high- speed micro-spindles for machine tools or manual machining.

speeds 5,000 to 140,000 revolutions/minute
power 250 / 500W or 600 / 900W
drive of 1 or 2 motors with a single converter
motor switching on fly
acceleration and braking in hidden time
minimum heating
improved quality of machining
increased lifespan of tools
without external ventilation

EASYsa - MS-FC 3.1 B

MS-FC 3.1 BD1: 1 spindle, connect. DIN
Order number: 4 218
MS-FC 3.1 BD2: 2 spindles, connect. DIN
Order number: 4 219
MS-FC 3.1 BI1: 1 spindle, connect. Intercontec
Order number: 4 220
MS-FC 3.1 BI2: 2 spindles, connect. Intercontec
Order number: 4 221

MS-FC 3.1 B 250/500W, base fixing

EASYsa - MS-FC 3.1 F

MS-FC 3.1 FD1: 1 spindle, connect. DIN
Order number: 4 222
MS-FC 3.1 FD2: 2 spindles, connect. DIN
Order number:: 4 223
MS-FC 3.1 FI1: 1 spindle, connect. Intercontec
Order number: 4 224
MS-FC 3.1 FI2: 2 spindles, connect. Intercontec
Order number: 4 225

MS-FC 3.1 F 250/500W, front fixing

EASYsa - MS-FC 3.2 B

MS-FC 3.2 BI2: 1 spindle, connect. Intercontec
Order number: 4 680
MS-FC 3.2 TI2: 2 spindles, connect. Intercontec
Order number: 4 681

MS-FC 3.2 B 600/900W, base fixing

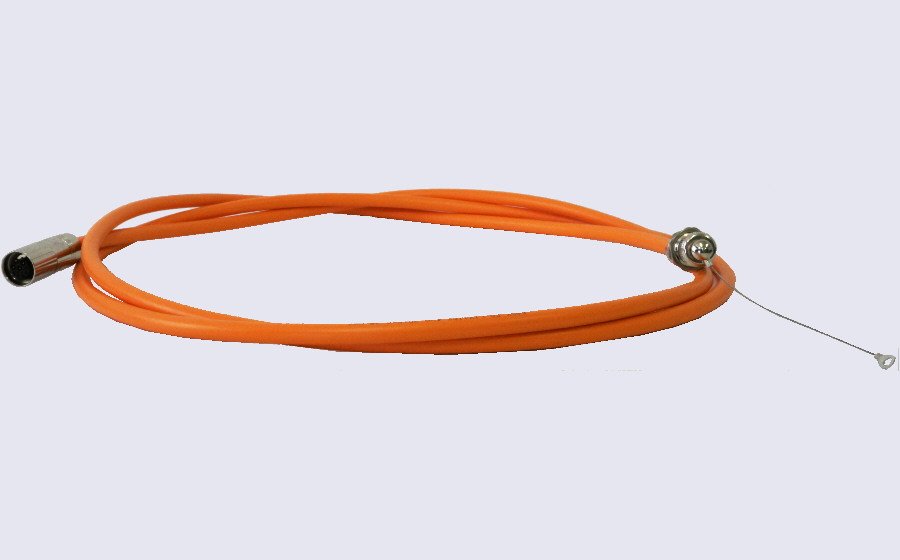

EASYsa - Extension cables for MS-FC

Length 0.5 m: Order number: 3 919
Length 1.5 m: Order number: 3 923
Length 3.0 m: Order number: 2 132
Length 5.0 m: Order number: 3 233
Length 10.0 m : Order number: 4 626

Extensions

EASYsa - Adapters and connectors for MS-FC

Adapters (converters -> spindle)

Intercontec -> DIN: Order number: 2 137
DIN -> Intercontec: Order number: 2 136

Connectors

DIN Order number: 4 243
Intercontec Order number: 4 244

Adapters, connectors

Documentation to download
